Escalator Main Chain

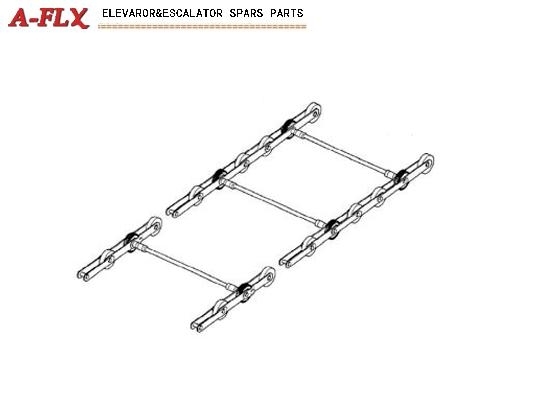

Escalator step chains are used in escalators and moving sidewalk systems to transmit power and transport passengers. They are widely used in escalator facilities. Such as subways, high-speed rails, airports, shopping malls and large supermarkets ...ect.

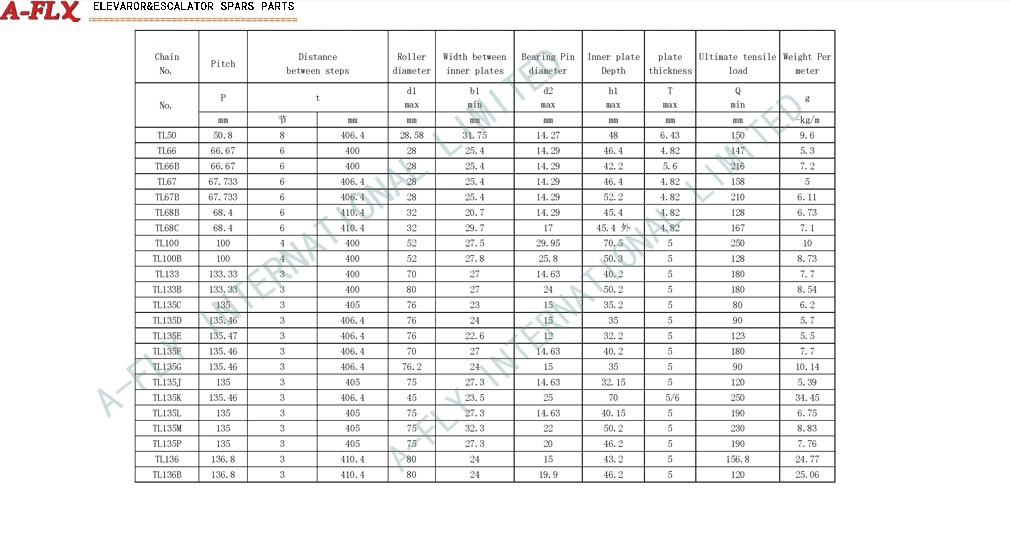

For different brand escalators, the parameter of the step chains and chain rollers are different.

For example:

For  Escalator 9300 9500 :

Pitch : 133.33mm

Chain Roller : 70*25mm / 76*25mm / 80*25mm

Axle Pin | Shaft Pin Diameter : 14.63mm / 12.7mm / 24mm



For  Escalator FT722/FT723/FT724 :

Pitch : 135mm

Chain Roller : 75*27.3mm

Axle Pin | Shaft Pin Diameter : 14.63mm / 22mm / 20mm



For  LG Sigma Escalator SCE SEE :

Pitch : 136.8mm

Chain Roller : 80*24mm

Axle Pin | Shaft Pin Diameter : 14.63mm / 15mm / 19.9mm



For  TransitMaster™ Escalator :

Pitch : 133.33mm

Step Chain Roller : 75mm*23.5mm

Axle Pin | Shaft Pin Diameter : 12.7mm



For  Escalator 508 :

Pitch : 135.46mm

Chain Rollers : 76*22mm / 70*27mm

Axle Pin | Shaft Pin Diameter : 15mm / 12.7mm



For Hyundai Escalator S750 :

Pitch : 135.47mm

Chain Roller : Roller 76*21.6mm

Axle Pin | Shaft Pin Diameter : 12.8mm



For for Mitsubishi Escalator J-Type:

Pitch : 67.733mm



For for TOSHIBA Escalator :

Pitch : 66.7mm



For Hitachi Escalator:

Pitch : 68.4mm

I



P=135.46  d=14.63
P=135.46  d=14.63
P=135 d=20 Escalator Main Chain
P=135 d=20 Escalator Main Chain
TH70019A  Escalator Main Chain For HYUNDAI
TH70019A  Escalator Main Chain For HYUNDAI
5366 Escalator Main Chain for Kone
5366 Escalator Main Chain for Kone
STEP CHAIN-3P
STEP CHAIN-3P
STEP CHAIN-6P
STEP CHAIN-6P
MIT-STEP CHAIN
MIT-STEP CHAIN
9300 Escalator Main Chain for Schindler
9300 Escalator Main Chain for Schindler
510 Step Chain Escalator Main Chain for OTIS
510 Step Chain Escalator Main Chain for OTIS
